Go Kart Tire Sizes: Why Front and Rear Numbers Can Differ
A go kart can use different tire sizes at the front and rear, even when all four wheels have the same rim diameter. Read the complete size for each axle. On the current Venom Captain two seat listing, the front tires are 21 × 7 on 10 inch rims, while the rear tires are 22 × 10 on 10 inch rims.
That difference matters when comparing a new kart or ordering replacement tires. A description that says only 10 inch wheels leaves out the tire's nominal overall diameter and width.
What the three numbers mean
In the common inch based format used for these Captain specifications, the first number describes nominal tire outside diameter, the second describes nominal tire width and the last identifies rim diameter. The Captain front size is commonly written as 21x7 followed by a separator and 10.
| Dimension | Front | Rear |
|---|---|---|
| Nominal overall tire diameter | 21 inches | 22 inches |
| Nominal tire width | 7 inches | 10 inches |
| Rim diameter | 10 inches | 10 inches |
Nominal size is a designation, rather than a promise of an exact measurement on every tire. Tire makers publish mounted dimensions and approved rim information separately. For example, Carlstar's technical tire tables distinguish the size label, mounted diameter, mounted width and rim width. That table illustrates the distinction; it is not a replacement tire recommendation for the Captain.

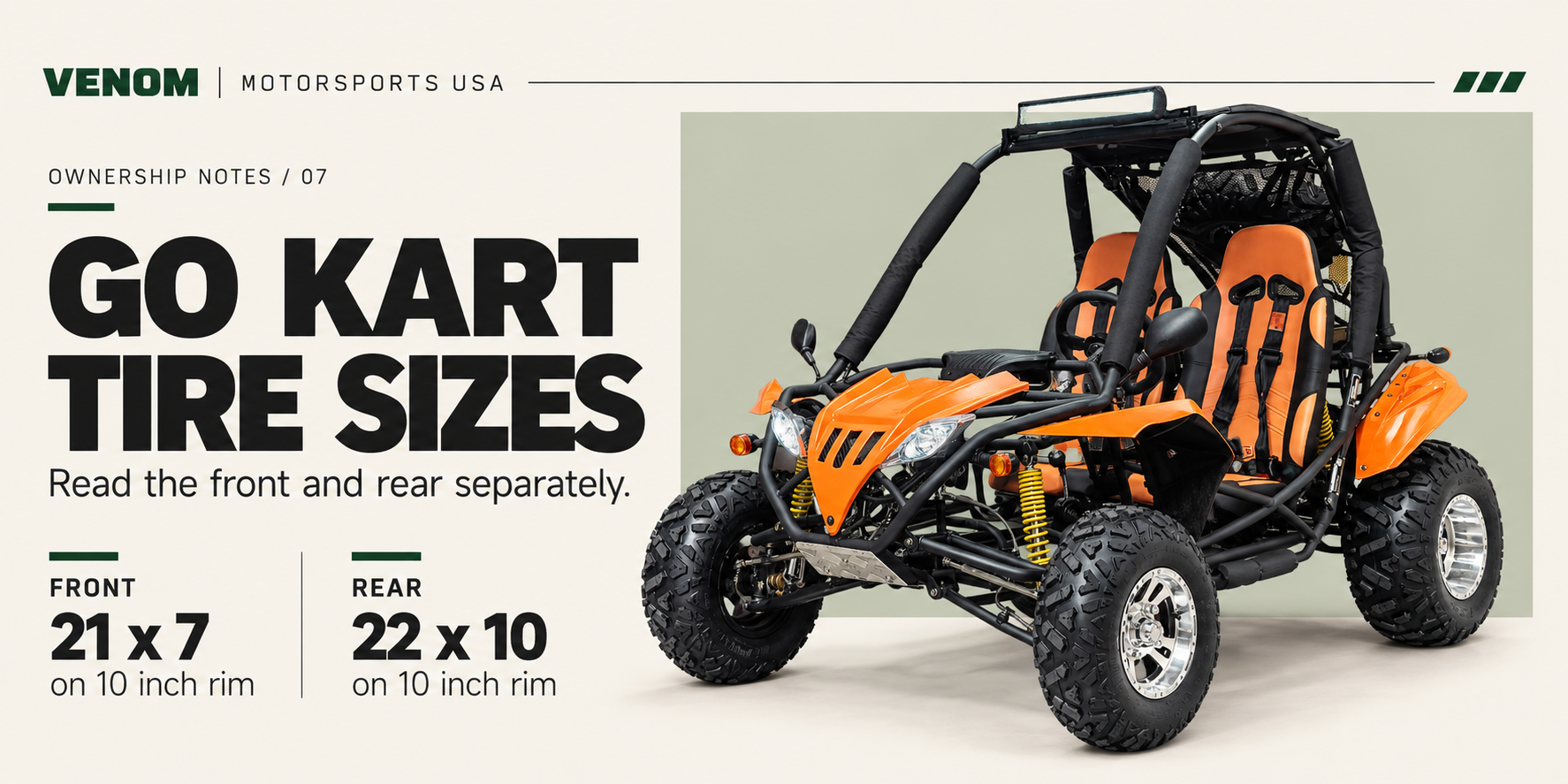

The Venom Captain example
The Venom Captain two seat go kart lists a front size of 21x7 on a 10 inch rim and a rear size of 22x10 on a 10 inch rim. Both its current product specification graphic and its tire specification fields identify that arrangement at our October 27, 2026 check.
Reading the figures together tells you that the rear tires are nominally taller and wider. It does not establish that a rear tire can be moved to the front, or that another tire with a 10 inch rim designation will fit either position.
The example applies to this two seat Captain listing. Do not transfer it to a four seat model, a different production version or another go kart because the name or body style looks similar.
Why matching the rim number is only the first check
A tire's rim diameter must match the wheel it is intended to fit, but diameter alone does not establish compatibility. Wheel width, tire construction, load specification and the vehicle's approved fitment also matter. The tire must have appropriate clearance from nearby parts throughout the vehicle's normal operation.
Changing outside diameter or width can alter that clearance. A wider tire should not be marketed as a guaranteed handling upgrade, and a taller tire should not be treated as a simple way to improve trail capability. Obtain a fitment recommendation for the exact kart before changing the specified size.
If the purchase is a complete wheel and tire assembly, there are additional wheel mounting dimensions to verify. The tire size cannot tell you the bolt pattern, mounting offset or hub fit. A photograph of a similar chrome wheel is not enough to match those details.
Use a separate front and rear record
Before asking about replacements, photograph the full marking on an existing front tire and an existing rear tire. Include any load, construction or direction markings and identify the kart model and production information available on the vehicle.
Keep the two axle records separate. A useful request says which position needs a tire, gives the complete marking and includes the wheel information if a full assembly is needed. That is much clearer than asking for a Captain tire without identifying the position.
If the markings on the delivered kart differ from a current website listing, have the difference checked before ordering. Production changes or a previous replacement can make the vehicle in front of you more specific than a general model description.
Tire size does not supply an inflation pressure
The size numbers are dimensions. They are not an operating pressure. Use the vehicle's specified pressure and the applicable tire instructions, with help from Venom support if the correct information is unclear.
There is no universal go kart pressure that can be calculated from these three numbers. Avoid copying an ATV pressure, a road motorcycle pressure or a value from an unrelated tire catalogue into your kart's setup.
Common go kart tire questions
Are the Captain's front and rear tires the same size?
The current two seat listing specifies different front and rear sizes: nominally 21 by 7 inches at the front and 22 by 10 inches at the rear, both on 10 inch rims.
Does a 10 inch wheel mean the tire is 10 inches tall?
No. In this size format, 10 identifies rim diameter. The first number describes nominal outside tire diameter.
Can I fit a bigger tire because the rim diameter matches?
Matching that number is not enough. Confirm the approved tire and wheel combination, clearance and vehicle compatibility before making a change.
When comparing Venom go karts, record both axle specifications alongside seating and overall dimensions. For the space needed at home, read our separate go kart dimensions and storage guide. Tire dimensions and vehicle dimensions answer different parts of the buying decision.
